蓄电池系列
|
电池型号 |
额定 电压( V ) |
10小时率 容量( AH ) |
外部尺寸(mm) | 参考重量(Kg) | |||
|
长 |
宽 |
高 |
总高 | ||||

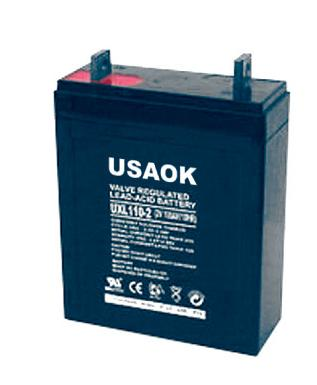

| UXL110-2 | 2 | 100 | 170.5 | 72.0 | 205.5 | 225.5 | 6.2 |
| UXL220-2 | 2 | 200 | 172.0 | 111.0 | 329.0 | 365.0 | 12.6 |
| UXL330-2 | 2 | 300 | 171.0 | 151.0 | 330.0 | 365.0 | 17.5 |
| UXL440-2 | 2 | 400 | 211.0 | 172.0 | 325.0 | 364.0 | 24.0 |
| UXL550-2 | 2 | 500 | 241.0 | 172.0 | 331.0 | 370.0 | 30.0 |
| UXL660-2 | 2 | 600 | 301.0 | 175.0 | 327.0 | 366.0 | 36.0 |
| UXL880-2 | 2 | 800 | 410.0 | 172.0 | 325.0 | 364.0 | 48.0 |
| UXL1100-2 | 2 | 1000 | 475.0 | 175.0 | 325.0 | 365.0 | 60.0 |
| UXL1650-2 | 2 | 1500 | 401.0 | 351.0 | 342.0 | 378.0 | 90.0 |
| UXL2200-2 | 2 | 2000 | 491.0 | 351.0 | 344.0 | 383.0 | 120.0 |
| UXL3300-2 | 2 | 3000 | 712.0 | 353.0 | 325.0 | 382.0 | 180.0 |
